ASRock Z590 Taichi Motherboard Review

Performance Testing

Test Platform:

CPU – Intel Core i9-11900K
Mobo – ASRock Z590 Taichi
RAM – 16GB (2x8GB) Corsair Dominator Platinum 3200MHz C14
GPU – Nvidia RTX 2080 Founders Edition
SSD – Corsair MP600 2TB
PSU – Thermaltake Toughpower Grand RGB Gold 750W
Chassis – Open BenchTable
Cooling – Custom Liquid Loop (EKWB Velocity CPU Block, EKWB PE240 Rad, 1x DDC Pump)

General Performance Testing

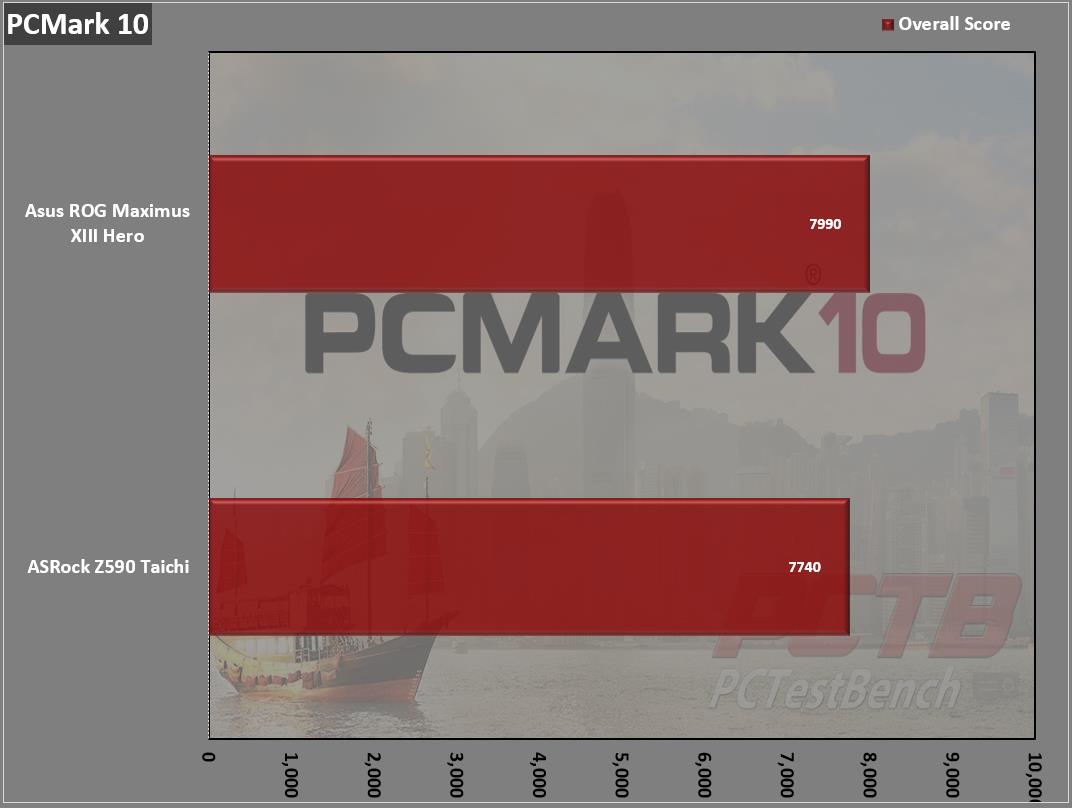

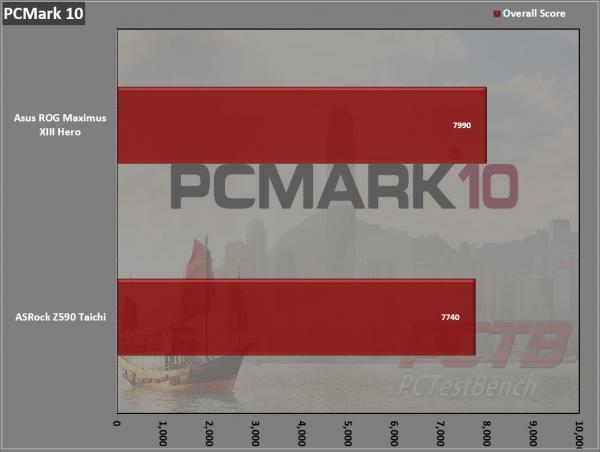

PCMark 10

PCMark 10 is the complete benchmark for the modern office. It is the ideal test for organizations that are evaluating PCs for a workforce with a range of performance needs. The tests in this benchmark cover a wide range of activities from everyday productivity tasks to demanding work with digital media content.
PCMark 10 uses a modular approach to build relevant benchmark tests around common end-user scenarios. A Test Group is a collection of workloads that share a common theme or purpose. There are four test groups in PCMark 10, we use three of them, Essentials, Productivity, and Digital Content Creation.

In our first full-system benchmark, ASRock’s Z590 Taichi provides great performance. Our Intel CPU sample came with the ASUS ROG Maximus XIII Hero so we’ll be using that as a comparison point, but ASUS is known to play a little fast and loose with Intel’s suggested specifications

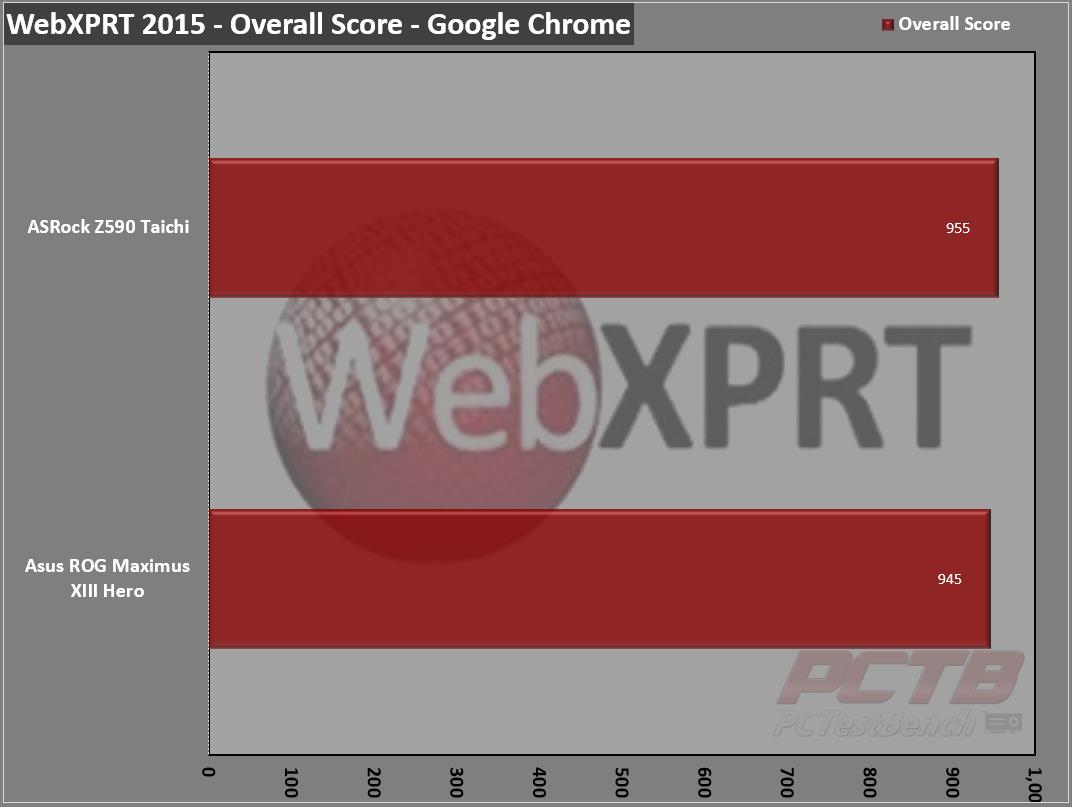

WebXPRT 2015

WebXPRT 2013 uses scenarios created to mirror the tasks you do every day to compare the performance of almost any Web-enabled device. It contains four HTML5- and JavaScript-based workloads: Photo Effects, Face Detect, Stocks Dashboard, and Offline Notes.  WebXPRT is run with the latest stable release version of Google Chrome browser, in this case, Version 90.

In our browser-based test, the Z590 Taichi pulls a nice win with 955 points.



CPU Performance Testing

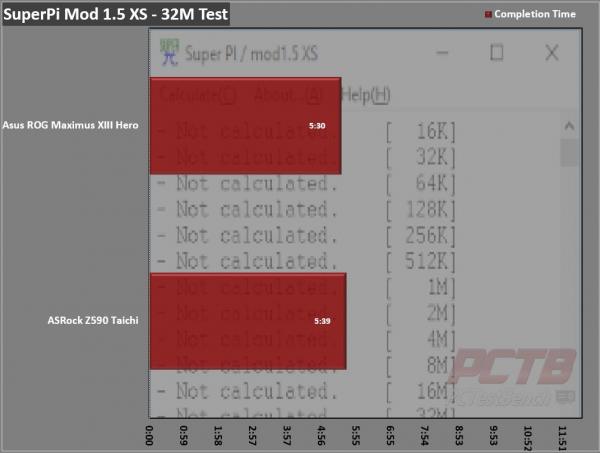

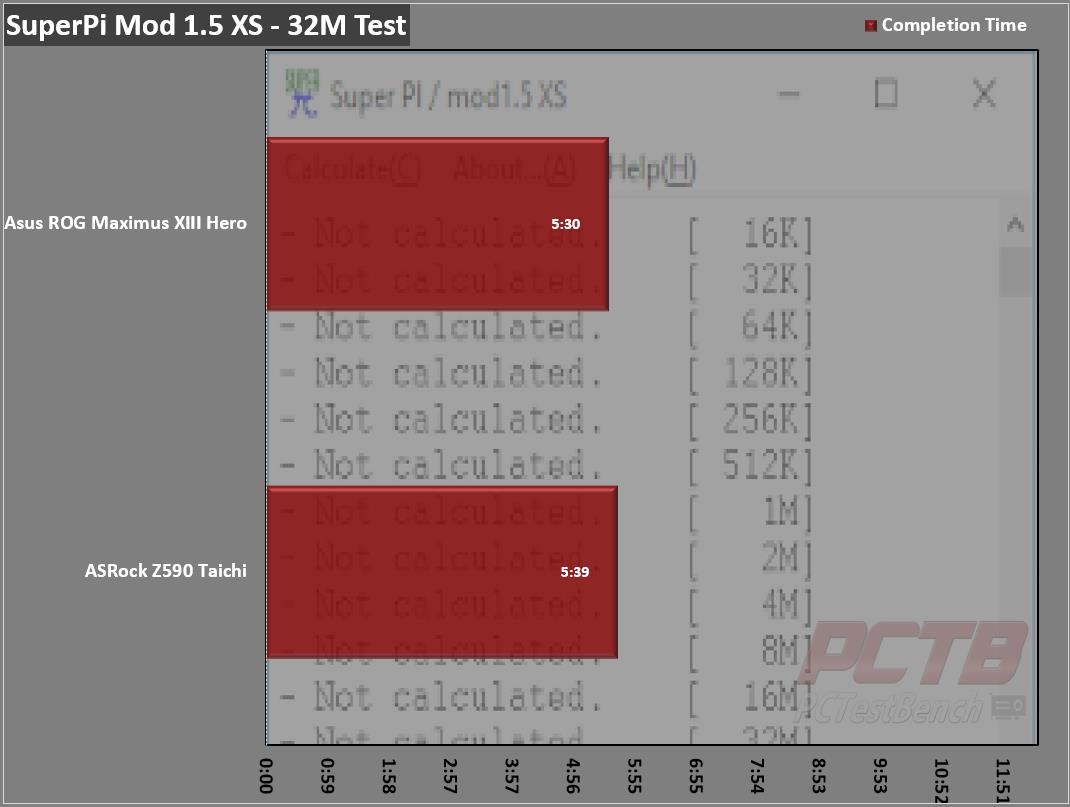

Super PI Modded 1.5

“In August 1995, the calculation of pi up to 4,294,960,000 decimal digits was succeeded by using a supercomputer at the University of Tokyo. The program was written by D.Takahashi in collaboration with Dr.Y.Kanada at the computer center. This record should be the current world record. (Details are shown in the windows help.) This record-breaking program was ported to personal computer environments such as Windows NT and Windows 95. In order to calculate 33.55 million digits, it takes within 3 days with a Pentium 90 MHz, 40 MB main memory, and 340 MB available storage.”

SuperPi’s 32M test is solved in five minutes and 39 seconds, one of our fastest times.

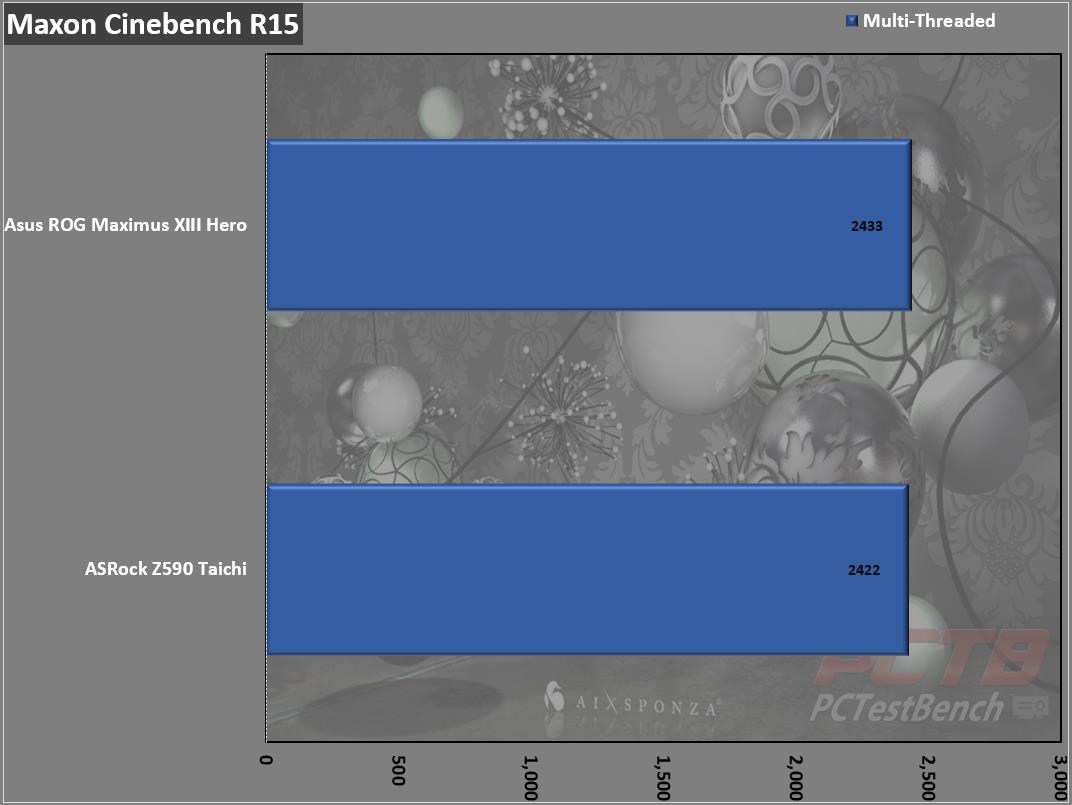

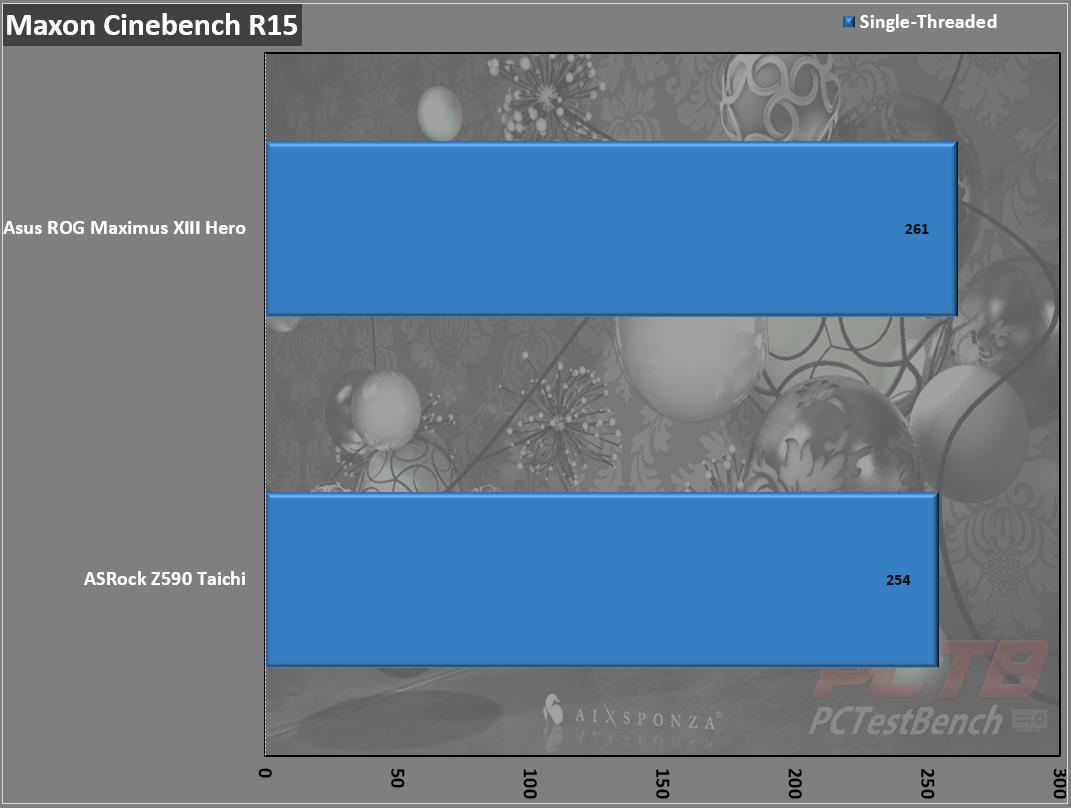

CINEBENCH R15

“CINEBENCH is a real-world cross-platform test suite that evaluates your computer’s performance capabilities. CINEBENCH is based on MAXON’s award-winning animation software CINEMA 4D, which is used extensively by studios and production houses worldwide for 3D content creation. MAXON software has been used in blockbuster movies such as Iron Man 3, Oblivion, Life of Pi or Prometheus, and much more. CINEBENCH is the perfect tool to compare CPU and graphics performance across various systems and platforms (Windows and OS X). And best of all: It’s completely free.”



Cinebench R15 lands the Z590 Taichi right in with Asus in Multi-threaded and does a decent job in single-threaded runs. Asus again ignores Intel suggested boost times so it scores a touch higher.

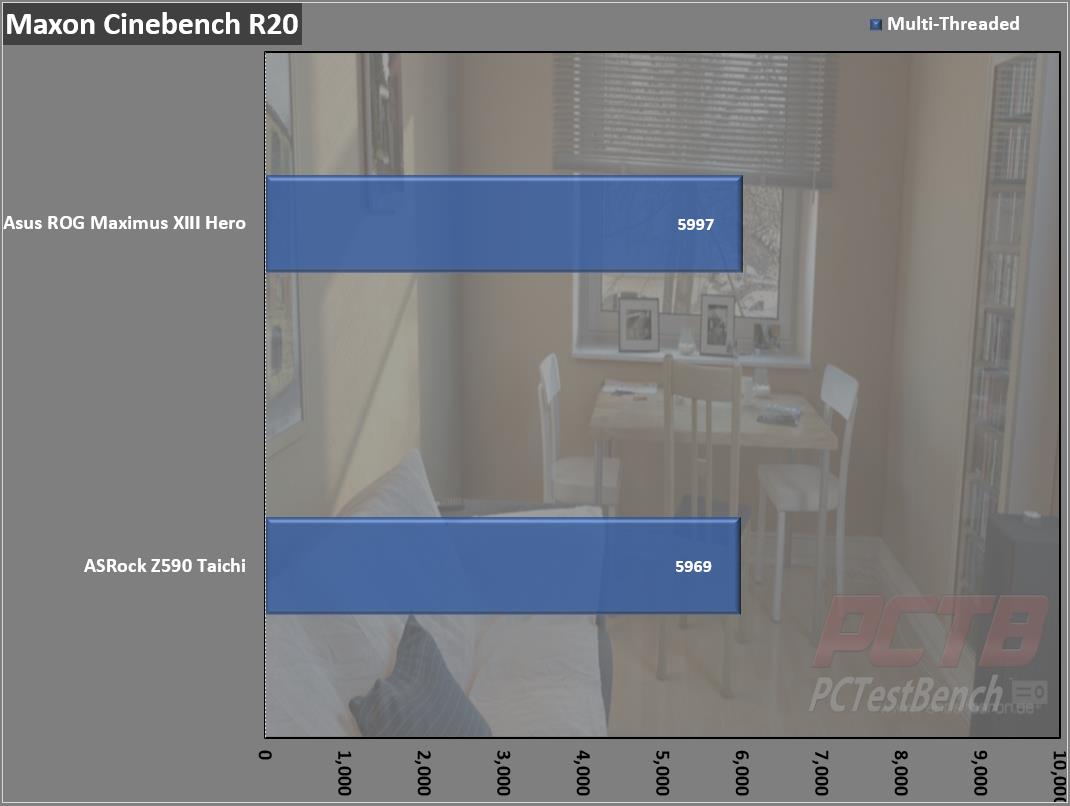

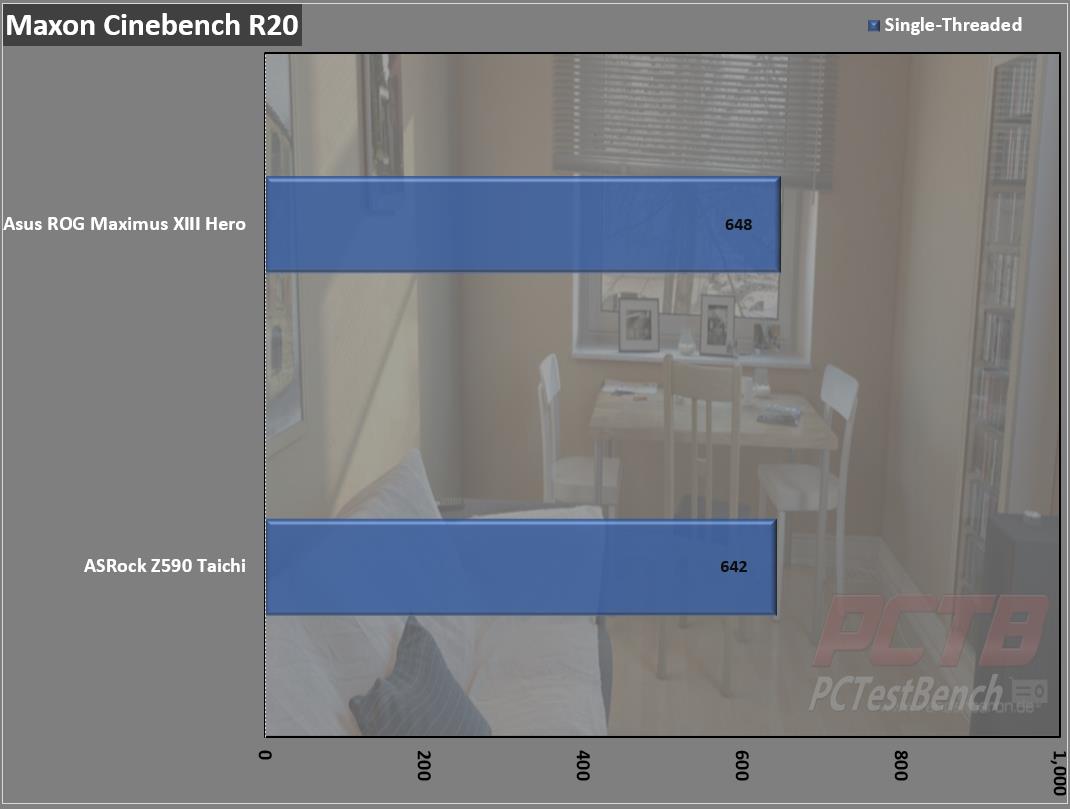

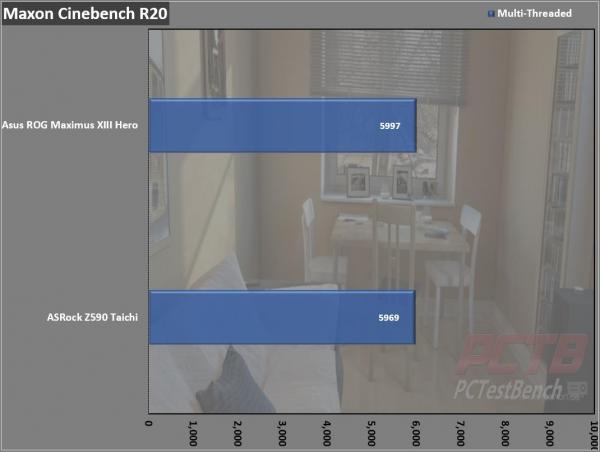

CINEBENCH R20

Cinebench is a real-world cross-platform test suite that evaluates your computer’s hardware capabilities. Improvements to Cinebench Release 20 reflect the overall advancements to CPU and rendering technology in recent years, providing a more accurate measurement of Cinema 4D’s ability to take advantage of multiple CPU cores and modern processor features available to the average user. Best of all: It’s free.



Cinebench R20 is pretty similar but even closer in scores.

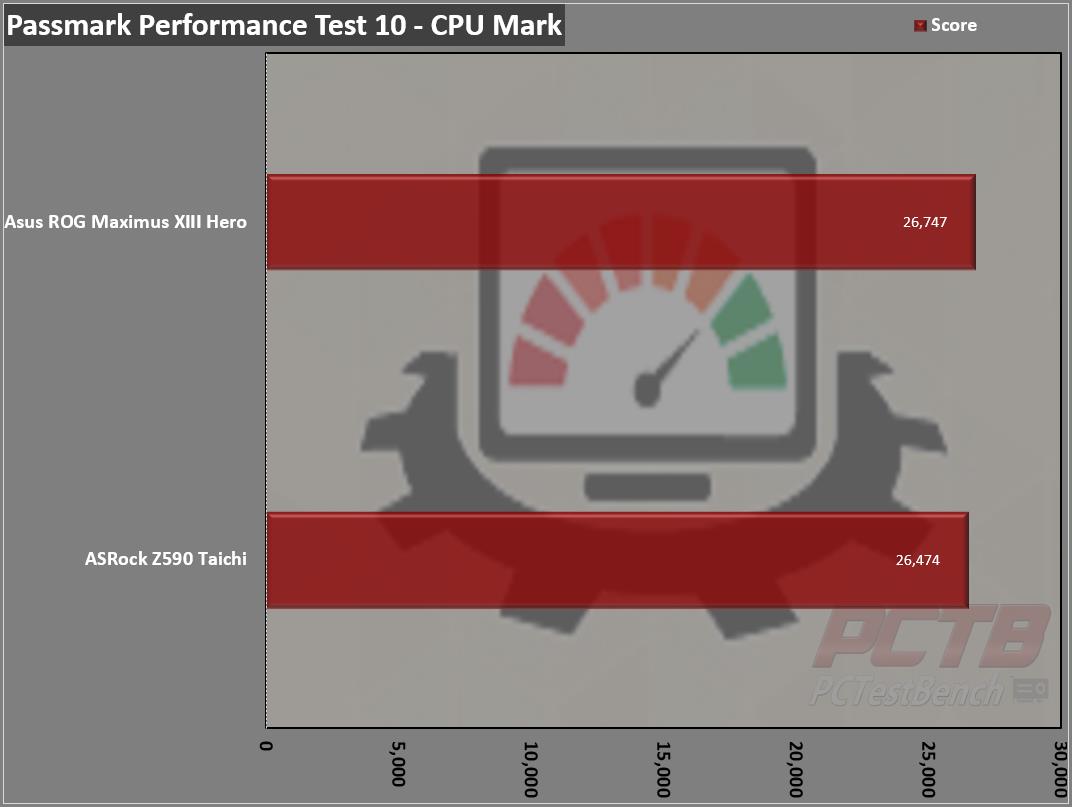

Passmark Performance Test – CPU Mark

“Fast, easy to use, PC speed testing, and benchmarking. PassMark Performance Test ™ allows you to objectively benchmark a PC using a variety of different speed tests and compare the results to other computers.”

Passmark gives a slight lead to Asus, but the Z590 Taichi does a great job here.

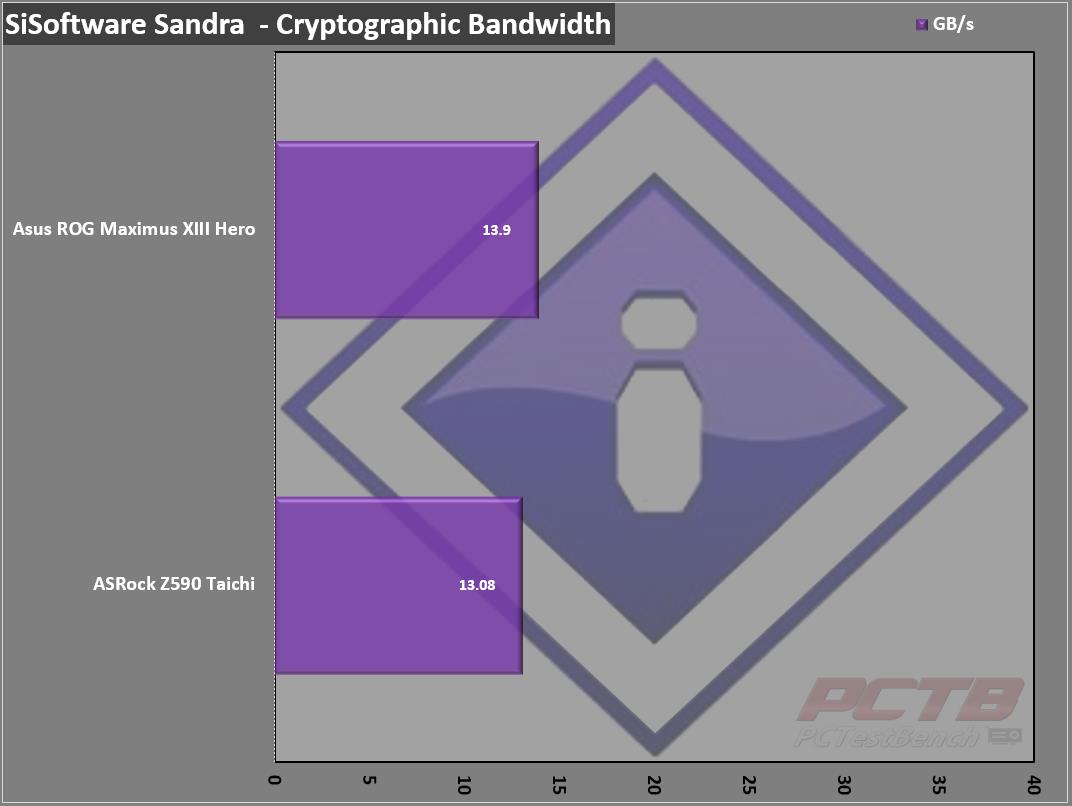

SiSoft Sandra – Cryptographic Bandwidth

“SiSoftware Sandra provides a robust package of diagnostic tools for testing your system and teasing out its problems–or potential headaches.”

SiSoft Cryptographic bandwidth comes in at a touch over 13GB/s which is a solid score.

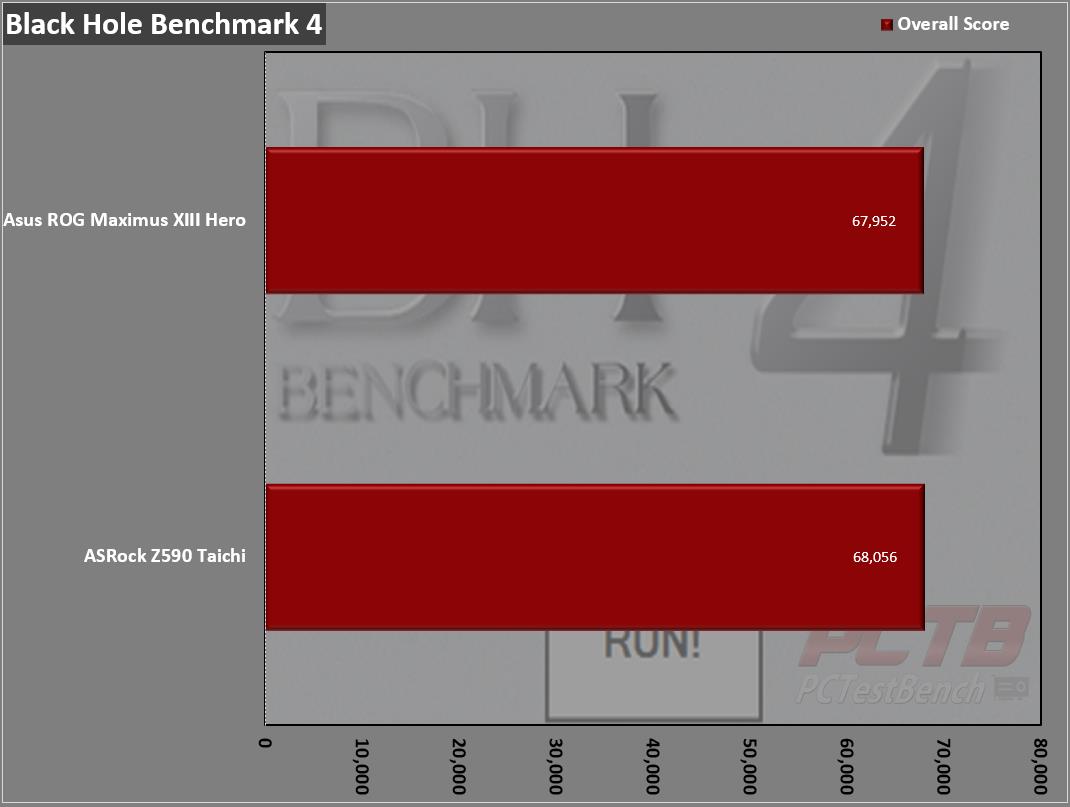

Black Hole 4.2

Let the beast run and benchmark your system in three different tests (Multithreaded, Single-threaded & 4-Threaded) that will test your CPU to the very limit, and score you among hundreds of other systems that have tested.

The Blackhole benchmark gives the Z590 Taichi a slight edge.

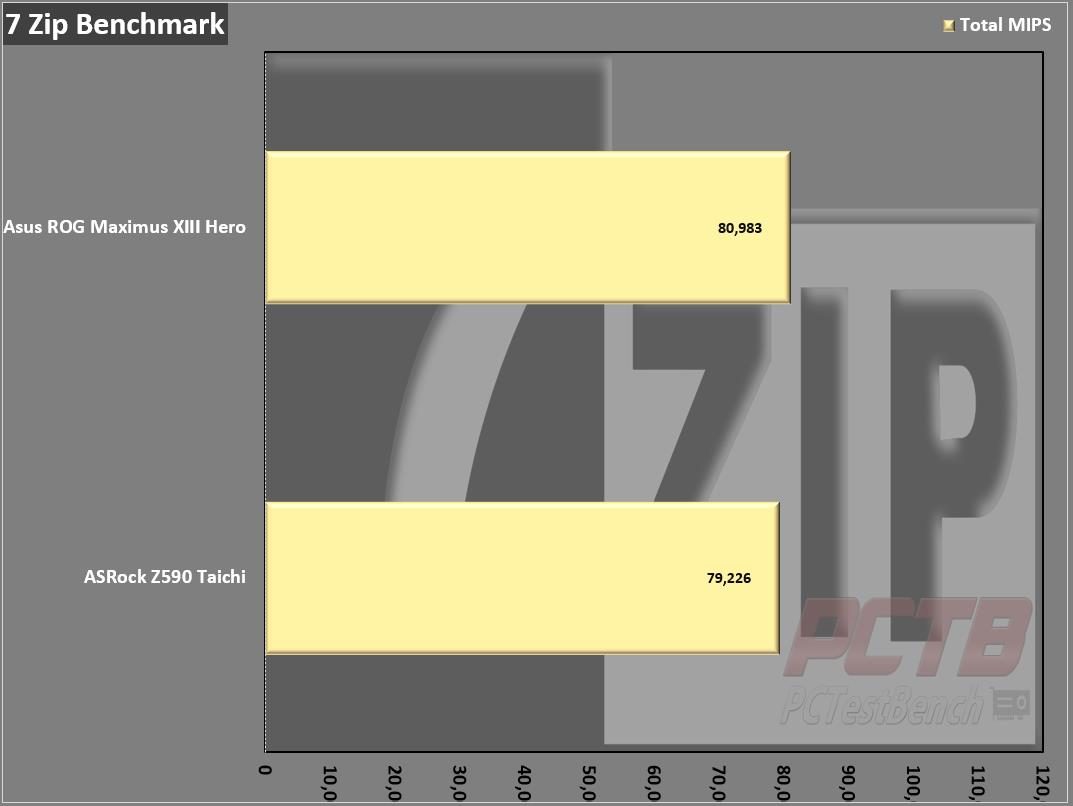

7-Zip

The benchmark shows a rating in MIPS (million instructions per second). The rating value is calculated from the measured speed, and it is normalized with the results of the Intel Core 2 CPU with a multi-threading option switched off. So, if you have a modern CPU from Intel or AMD, rating values in single-thread mode must be close to real CPU frequency. There are two tests, compression with the LZMA method and decompression with the LZMA method. Once the total passes reach 50, the score is taken

The Z590 Taichi scores just under 80k MIPS in 7-zip.
