ASRock X570 PG Velocita Motherboard Review

Performance Testing

Test Platform:

CPU – AMD Ryzen 9 3900X
Mobo – ASRock X570 Phantom Gaming Velocita
RAM – 16GB (2x8GB) Corsair Dominator Platinum 3200MHz C14
GPU – Nvidia RTX 2080 Founders Edition
SSD – Corsair MP600 2TB
PSU – Thermaltake Toughpower Grand RGB Gold 750W
Chassis – Open BenchTable
Cooling – Custom Liquid Loop (EKWB Velocity CPU Block, EKWB PE240 Rad, 1x DDC Pump)

All testing is performed at default settings except for enabling XMP (via D.O.C.P.) (Profile 1: 3200MHz 16-18-18-38 1.35V).

General Performance Testing

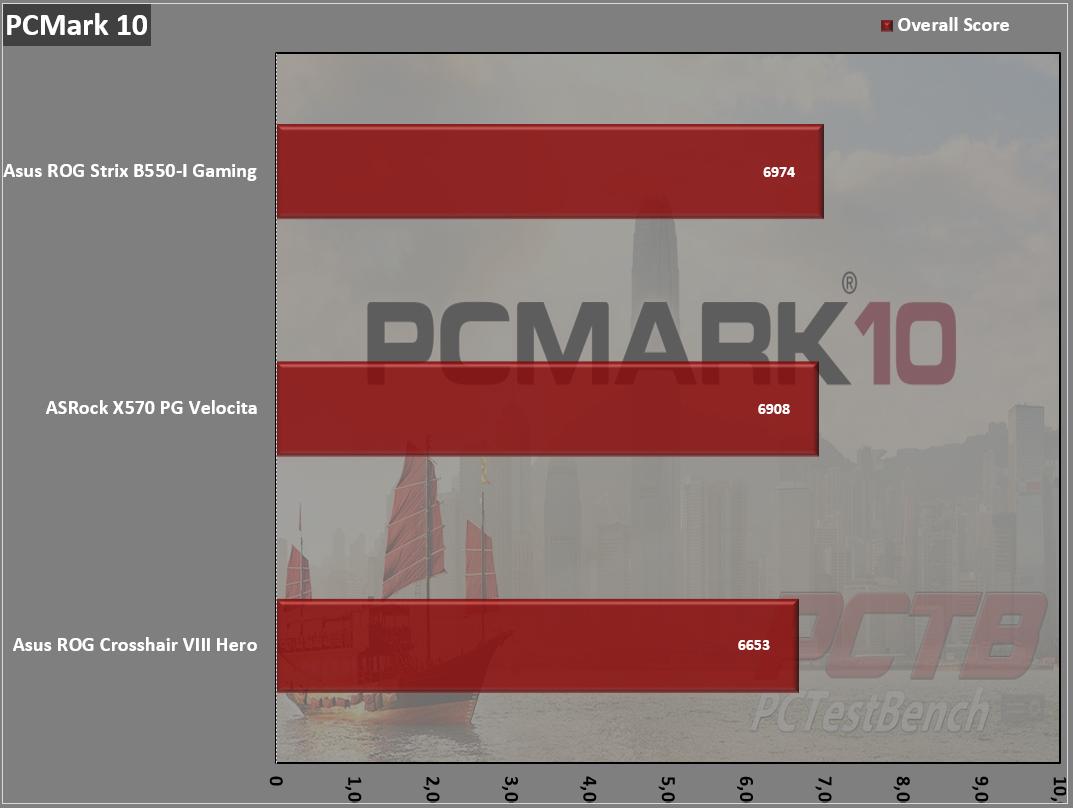

PCMark 10

PCMark 10 is the complete benchmark for the modern office. It is the ideal test for organizations that are evaluating PCs for a workforce with a range of performance needs. The tests in this benchmark cover a wide range of activities from everyday productivity tasks to demanding work with digital media content.
PCMark 10 uses a modular approach to build relevant benchmark tests around common end-user scenarios. A Test Group is a collection of workloads that share a common theme or purpose. There are four test groups in PCMark 10, we use three of them.
Essentials: covers the common, everyday ways that people use a PC. The workloads include Web Browsing, Video Conferencing, and App Start-up time.
Productivity: measures system performance with everyday office applications. This test group includes Spreadsheets and Writing workloads.
Digital Content Creation: This test group’s workload reflects the demands of working with digital content and media. The tests include Photo Editing, Video Editing, and Rendering and Visualization.

ASRock’s X570 PG Velocita performs well in our overall system benchmark with it missing taking first place by a fraction of a percent.

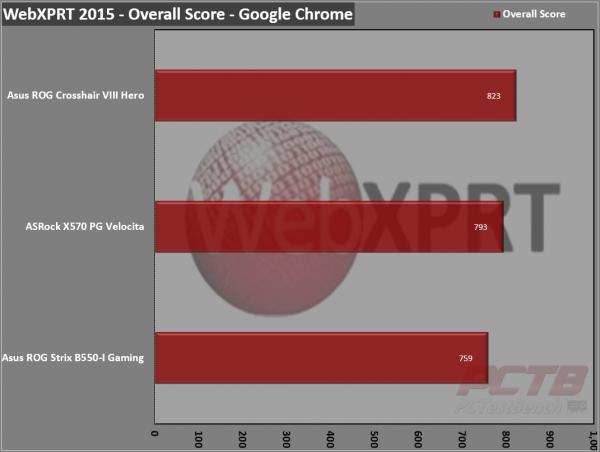

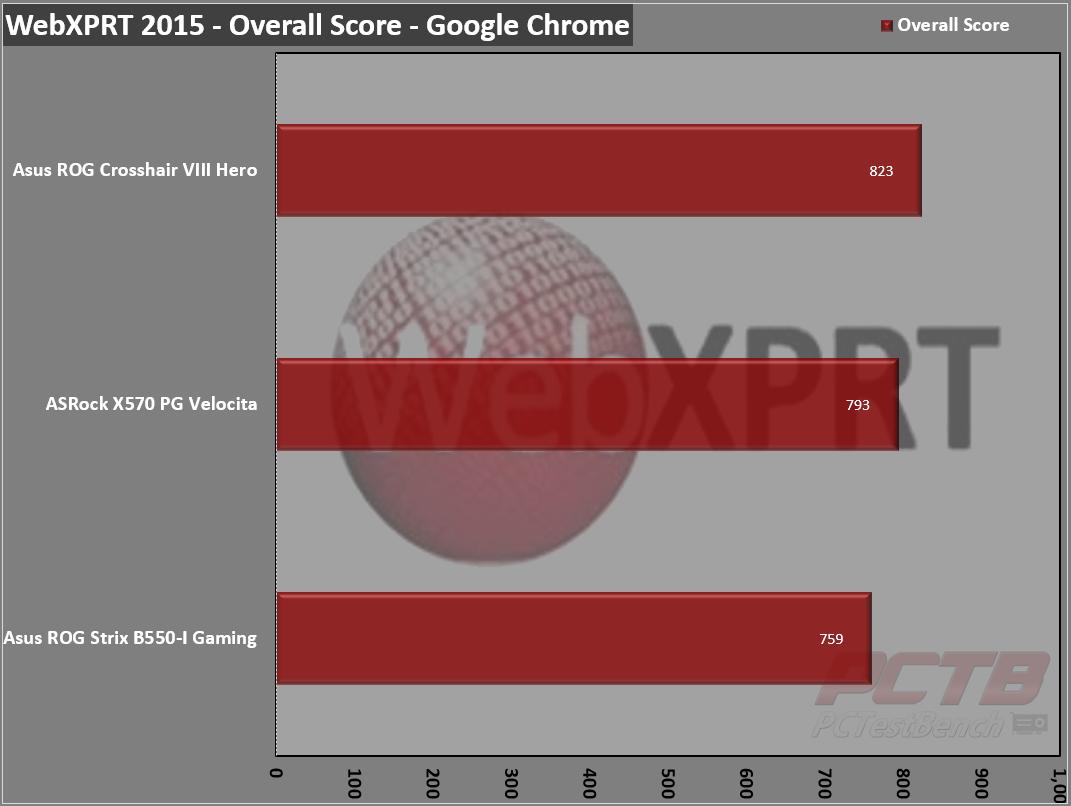

WebXPRT 2015

WebXPRT 2013 uses scenarios created to mirror the tasks you do every day to compare the performance of almost any Web-enabled device. It contains four HTML5- and JavaScript-based workloads: Photo Effects, Face Detect, Stocks Dashboard, and Offline Notes.  WebXPRT is run with the latest stable release version of Google Chrome browser, in this case, Version 61.

In our browser-based test, the PG Velocita does a great job, scraping up 793 points.



CPU Performance Testing

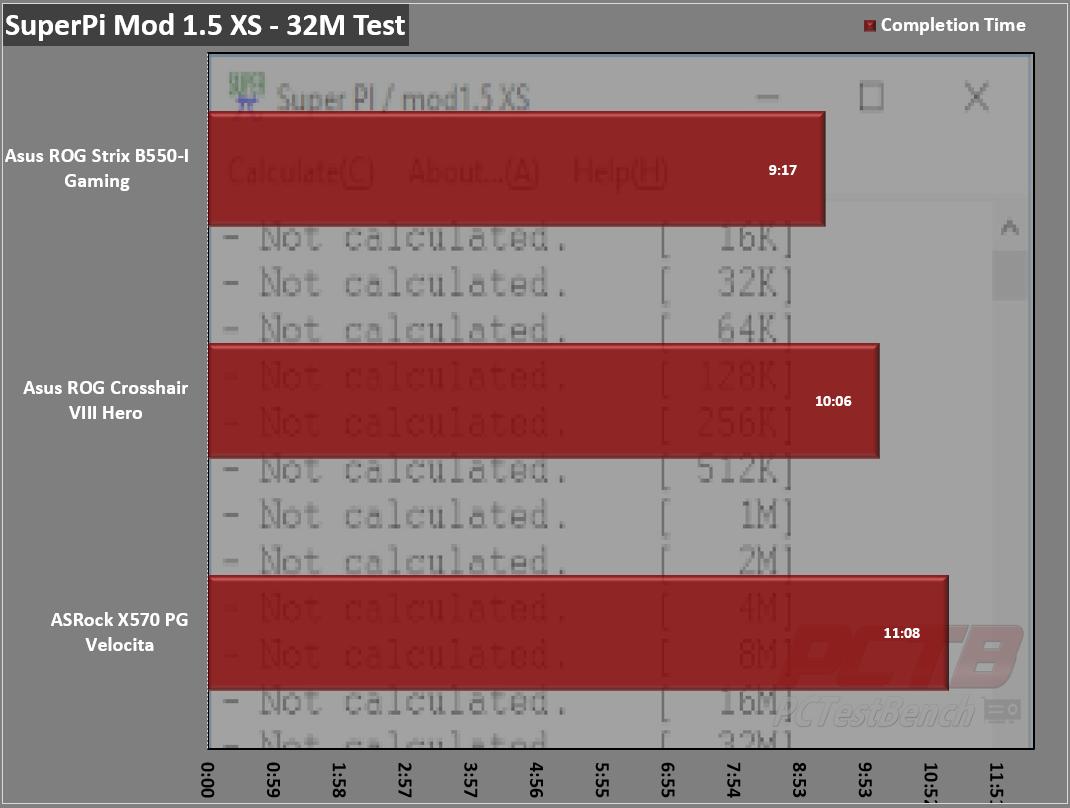

Super PI Modded 1.5

“In August 1995, the calculation of pi up to 4,294,960,000 decimal digits was succeeded by using a supercomputer at the University of Tokyo. The program was written by D.Takahashi in collaboration with Dr.Y.Kanada at the computer center. This record should be the current world record. (Details are shown in the windows help.) This record-breaking program was ported to personal computer environments such as Windows NT and Windows 95. In order to calculate 33.55 million digits, it takes within 3 days with a Pentium 90 MHz, 40 MB main memory, and 340 MB available storage.”

This test always has a widespread on scores or times we should say. ASRock doesn’t push our CPU quite as hard with only a single thread loaded down, which reflects the time of just over 11 minutes.



CINEBENCH R15

“CINEBENCH is a real-world cross-platform test suite that evaluates your computer’s performance capabilities. CINEBENCH is based on MAXON’s award-winning animation software CINEMA 4D, which is used extensively by studios and production houses worldwide for 3D content creation. MAXON software has been used in blockbuster movies such as Iron Man 3, Oblivion, Life of Pi or Prometheus, and much more. CINEBENCH is the perfect tool to compare CPU and graphics performance across various systems and platforms (Windows and OS X). And best of all: It’s completely free.”

ASRock’s X570 PG Velocita holds a slight edge in Cinebench’s multi-threaded test but falls a single point short of 1^st place in single core.



CINEBENCH R20

Cinebench is a real-world cross-platform test suite that evaluates your computer’s hardware capabilities. Improvements to Cinebench Release 20 reflect the overall advancements to CPU and rendering technology in recent years, providing a more accurate measurement of Cinema 4D’s ability to take advantage of multiple CPU cores and modern processor features available to the average user. Best of all: It’s free.

Interestingly, in Cinebench R20, the PG Velocita holds a solid lead in the single-threaded benchmark run and a decent lead in the multi-threaded run.

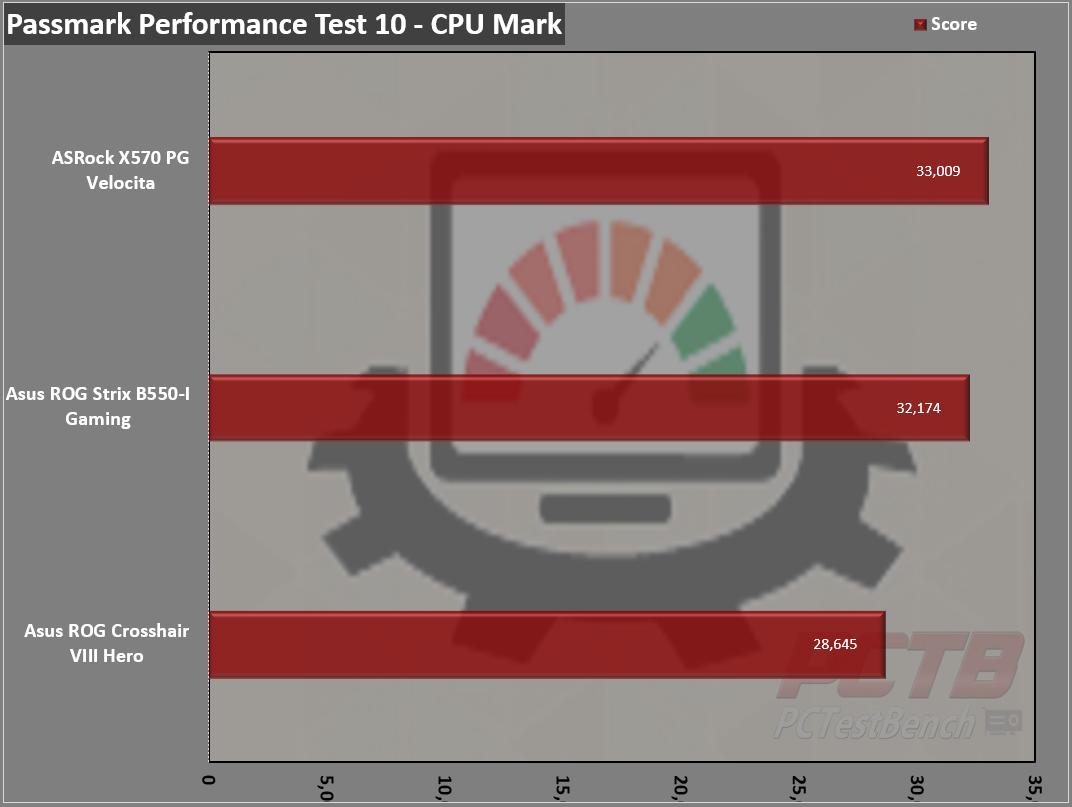

Passmark Performance Test – CPU Mark

“Fast, easy to use, PC speed testing, and benchmarking. PassMark Performance Test ™ allows you to objectively benchmark a PC using a variety of different speed tests and compare the results to other computers.”

ASRock’s X570 PG Velocita knocks it out of the park here, clearing the 33k mark which plants it firmly in first place.

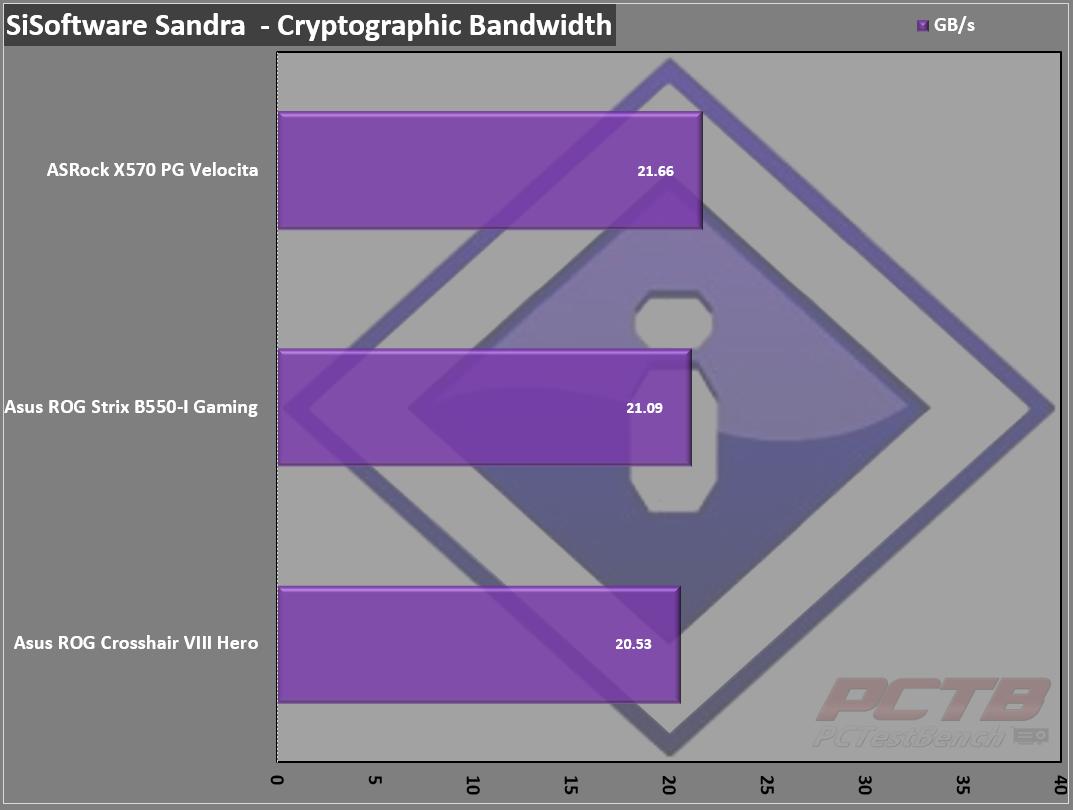

SiSoft Sandra – Cryptographic Bandwidth

“SiSoftware Sandra provides a robust package of diagnostic tools for testing your system and teasing out its problems–or potential headaches.”

In this test, ASRock holds a small but notable lead with 21.66 GB/s worth of Cryptographic bandwidth.

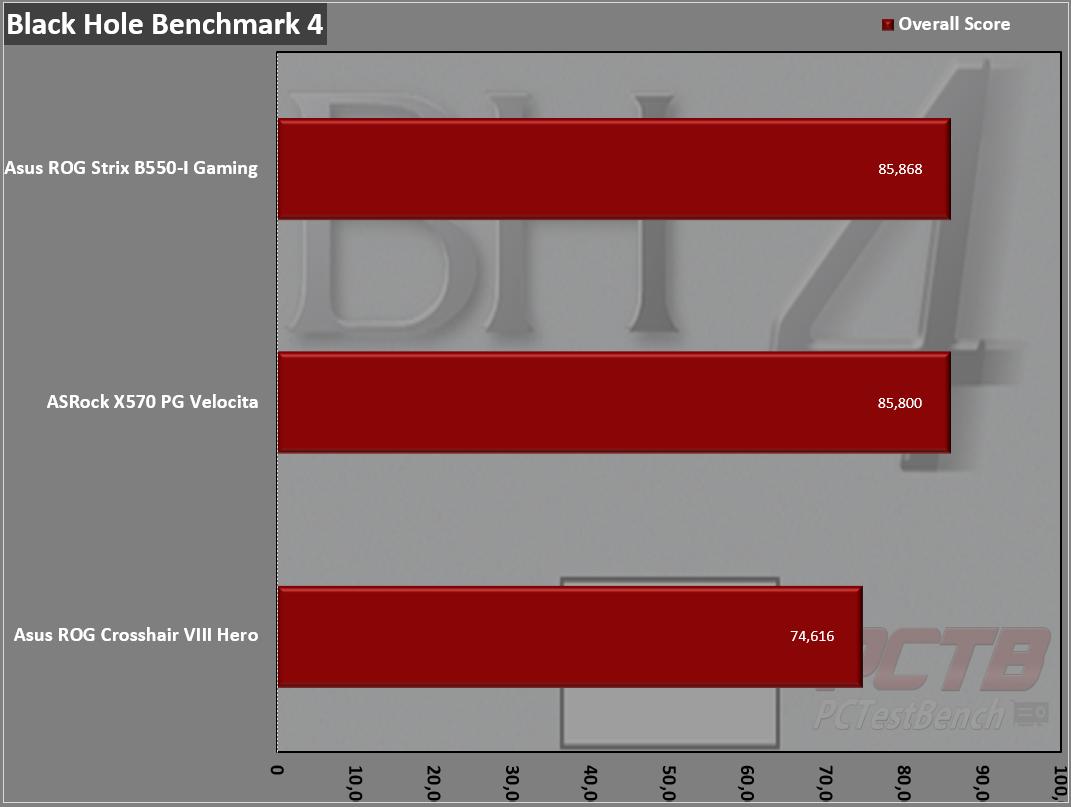

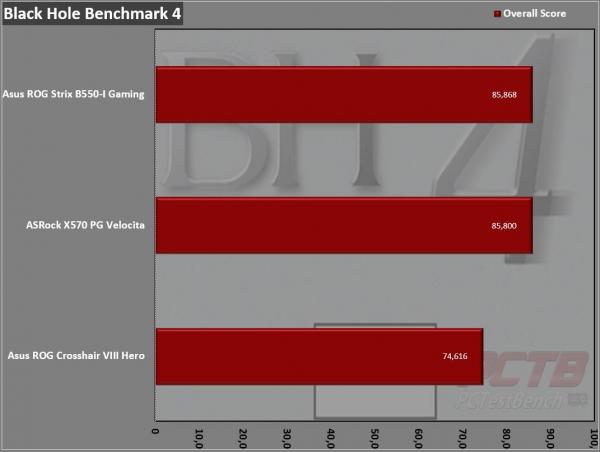

Black Hole 4.2

Let the beast run and benchmark your system in three different tests (Multithreaded, Single-threaded & 4-Threaded) that will test your CPU to the very limit, and score you among hundreds of other systems that have tested.

Multithreaded will test your CPU’s efficiency of running more than one thread without major system lag. The higher you score on this one, the more threads your CPU can handle with a comfortable speed. High multithreaded scores generally mean you can render things faster.

4-Threaded tests your CPU’s performance in games since most games currently run on 4 threads.

Single-threaded evaluates how fast the CPU can handle a single, dedicated thread for processing.

ASRock trades blows with Asus here and we see a mere 68 points worth of spread, statistically insignificant.

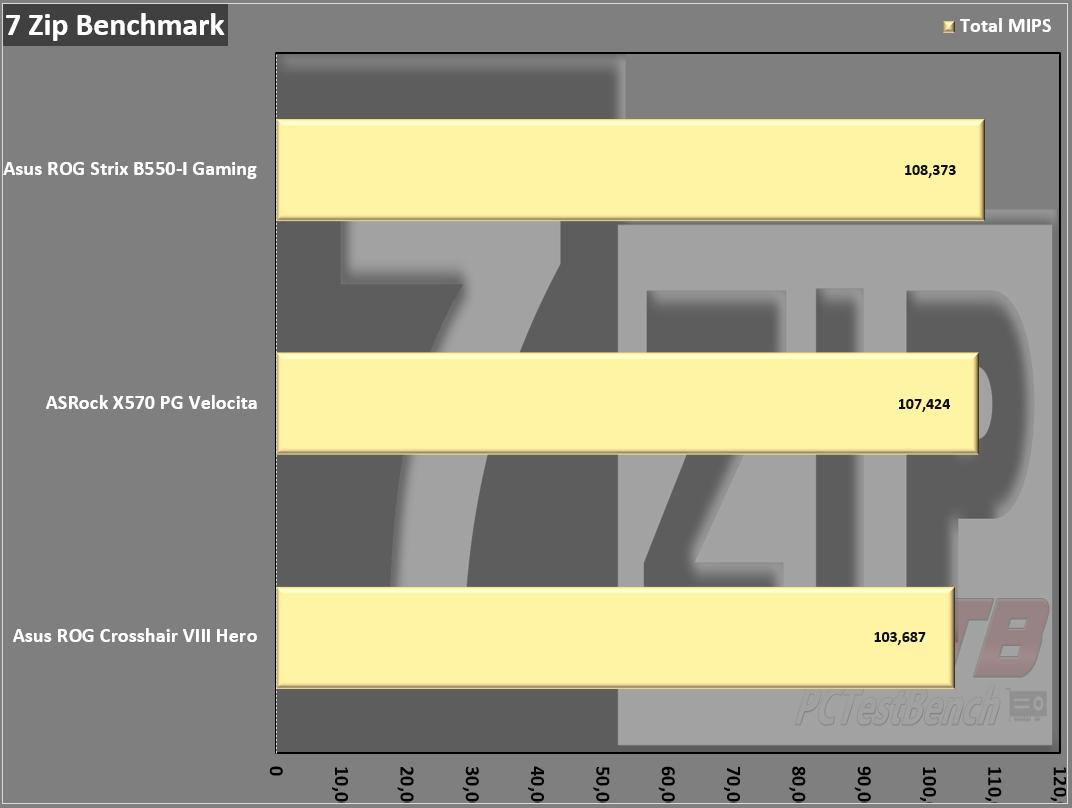

7-Zip

The benchmark shows a rating in MIPS (million instructions per second). The rating value is calculated from the measured speed, and it is normalized with the results of the Intel Core 2 CPU with a multi-threading option switched off. So, if you have a modern CPU from Intel or AMD, rating values in single-thread mode must be close to real CPU frequency. There are two tests, compression with the LZMA method and decompression with the LZMA method. Once the total passes reach 50, the score is taken.

7Zip gives us a score of over 107,400 MIPS, a fraction of a percent from first place.
