AMD Ryzen 5 5600X CPU Review

Synthetic Testing



Test Platform:

CPU – AMD Ryzen 5 5600X
Mobo – ASRock X570 PG Velocita
RAM – 32GB (4x8GB) HyperX Fury RGB 3200MHz C16
GPU – Nvidia RTX 2080 Founders Edition
SSD – Corsair MP600 2TB
PSU – Thermaltake Toughpower Grand RGB Gold 750W
Chassis – Open BenchTable
Cooling – Custom Liquid Loop (EKWB Velocity CPU Block, EKWB PE240 Rad, 1x DDC Pump)

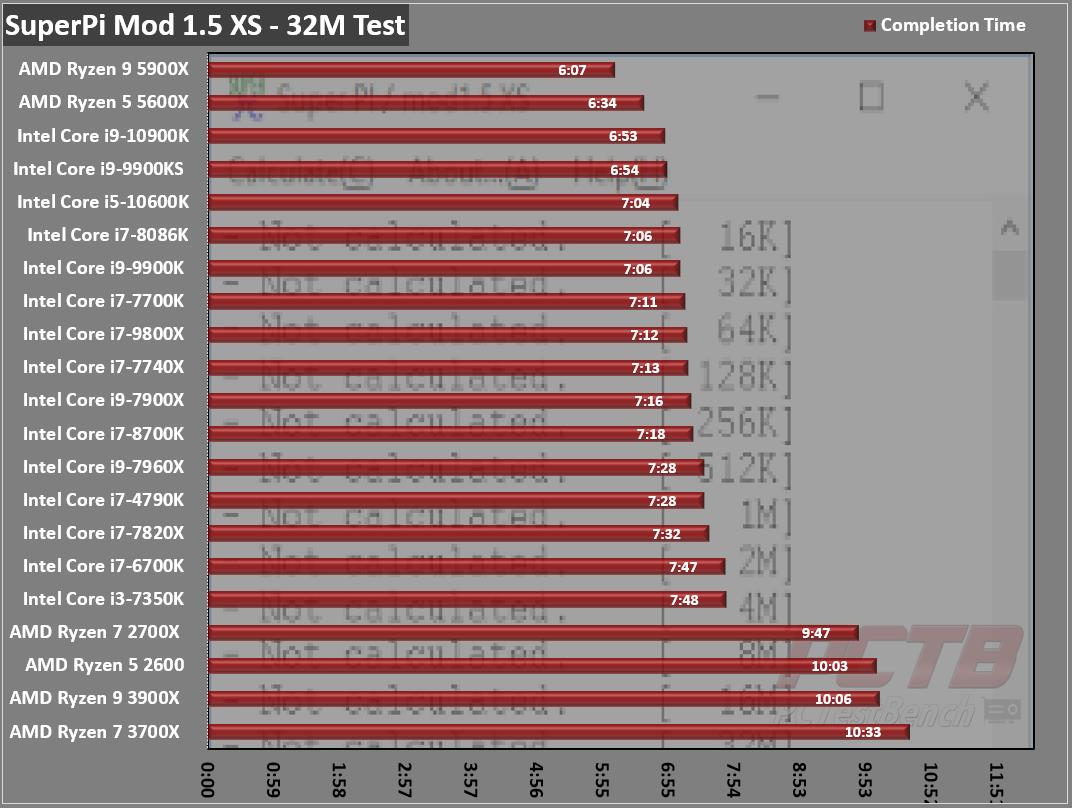

Super PI Modded 1.5

“In August 1995, the calculation of pi up to 4,294,960,000 decimal digits was succeeded by using a supercomputer at the University of Tokyo. The program was written by D.Takahashi in collaboration with Dr.Y.Kanada at the computer center. This record should be the current world record. (Details are shown in the windows help.) This record-breaking program was ported to personal computer environments such as Windows NT and Windows 95. In order to calculate 33.55 million digits, it takes within 3 days with a Pentium 90 MHz, 40 MB main memory, and 340 MB available storage.”

AMD’s Ryzen 5 3600X solves for 32 Million digits of Pi in our second-fastest time ever, and almost half of the time of last generation Ryzen CPUs and only bested by its bigger sibling.

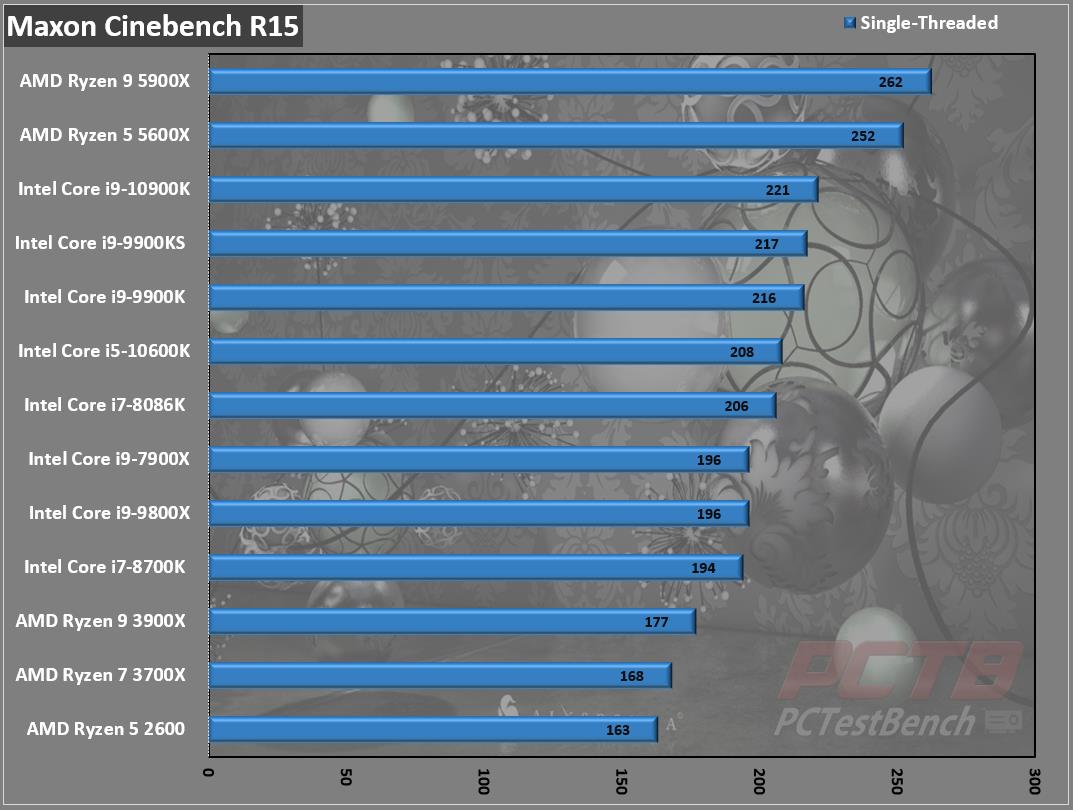

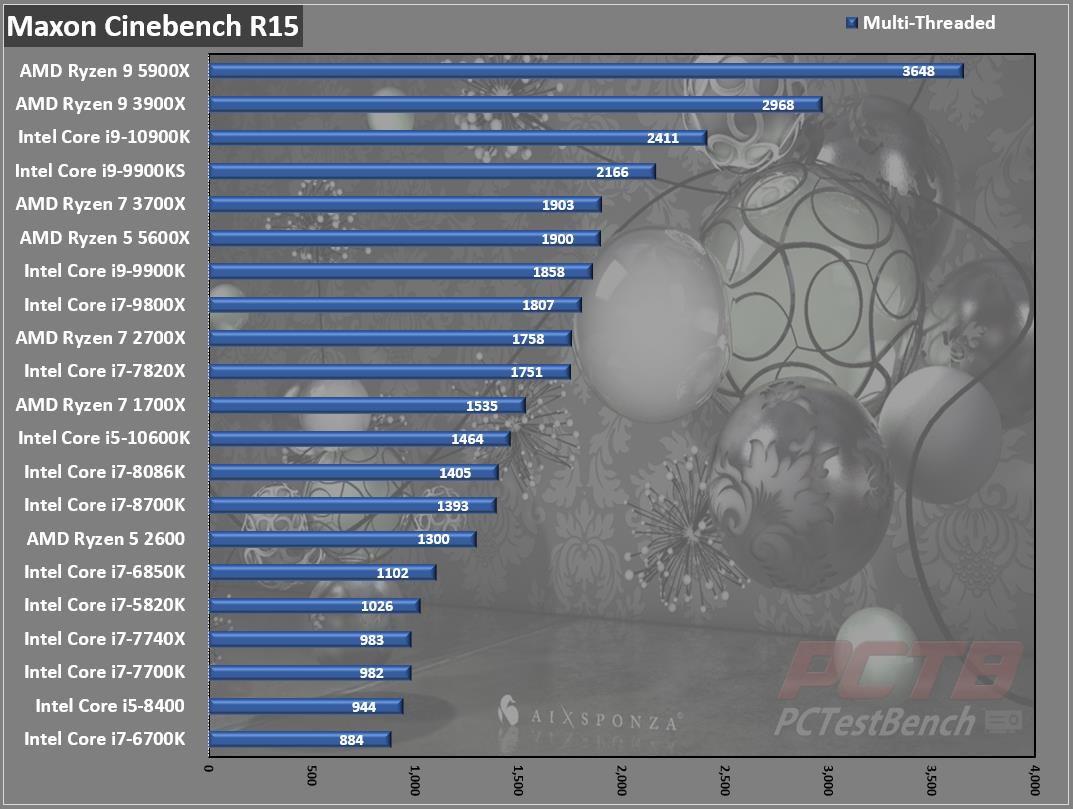

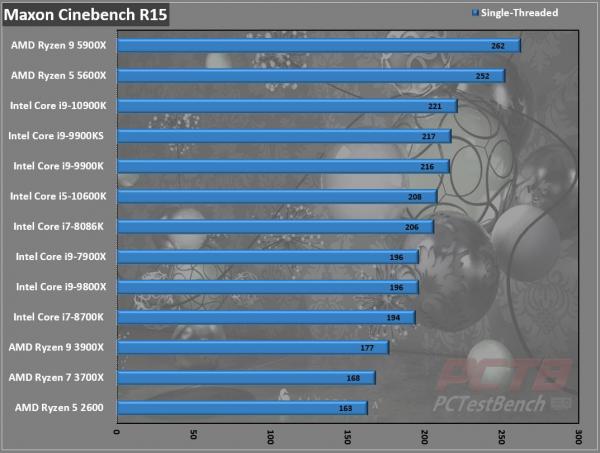

CINEBENCH R15

“CINEBENCH is a real-world cross-platform test suite that evaluates your computer’s performance capabilities. CINEBENCH is based on MAXON’s award-winning animation software CINEMA 4D, which is used extensively by studios and production houses worldwide for 3D content creation. MAXON software has been used in blockbuster movies such as Iron Man 3, Oblivion, Life of Pi or Prometheus, and much more.

CINEBENCH is the perfect tool to compare CPU and graphics performance across various systems and platforms (Windows and OS X). And best of all: It’s completely free.”



That single-core performance is crazy, and we see a dead heat against last generation’s 8-core 16-thread 3700X

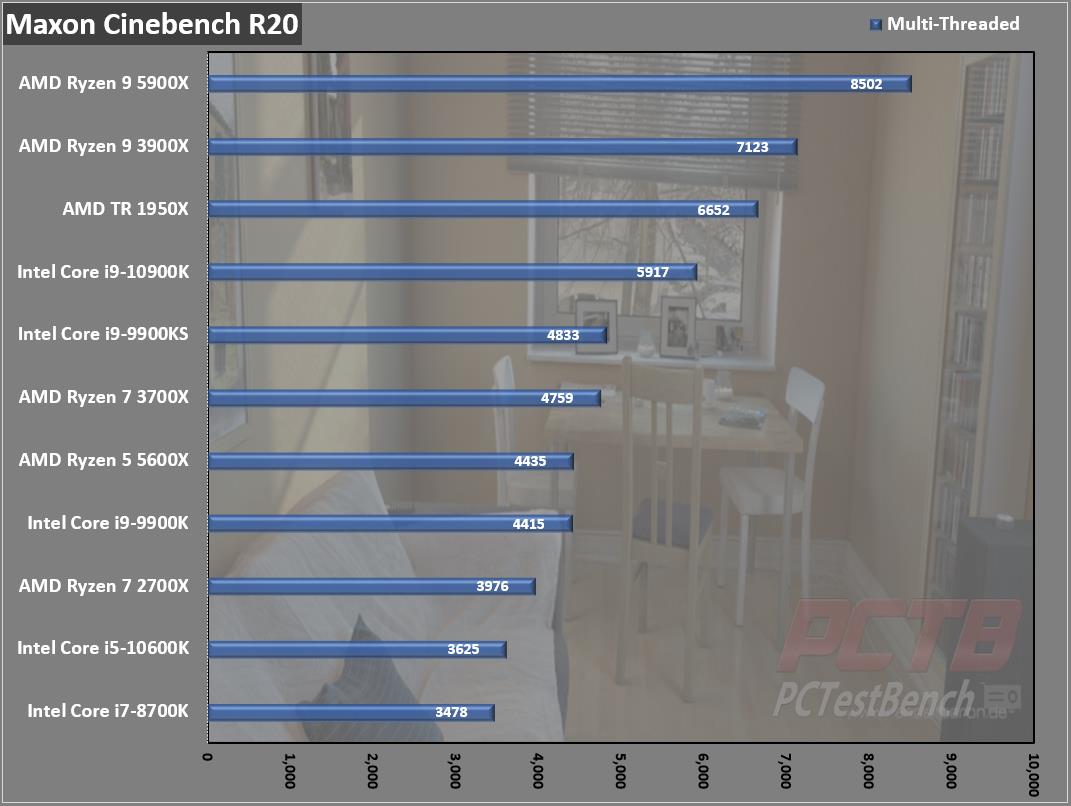

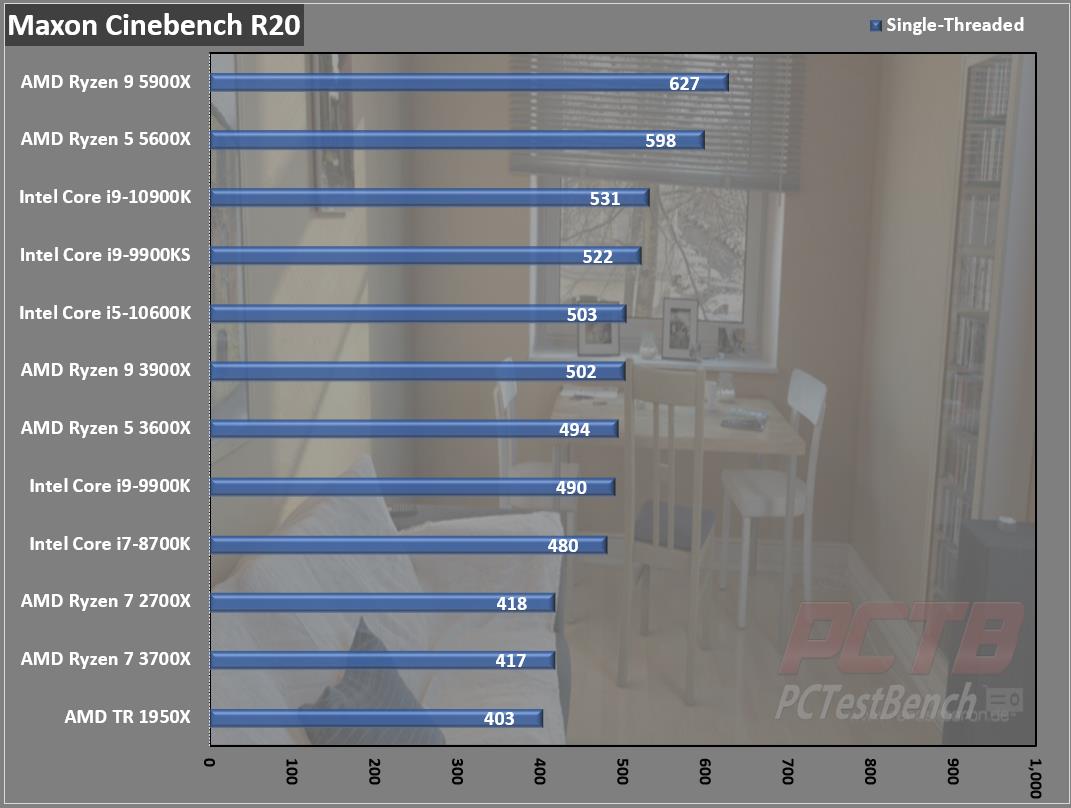

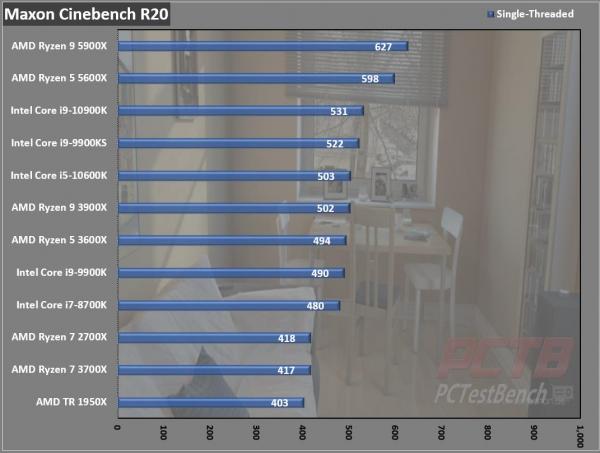

CINEBENCH R20

Cinebench is a real-world cross-platform test suite that evaluates your computer’s hardware capabilities. Improvements to Cinebench Release 20 reflect the overall advancements to CPU and rendering technology in recent years, providing a more accurate measurement of Cinema 4D’s ability to take advantage of multiple CPU cores and modern processor features available to the average user. Best of all: It’s free.

Cinebench 20 shows similar results with the 5600X besting Intel’s similarly priced Core i5-10600K

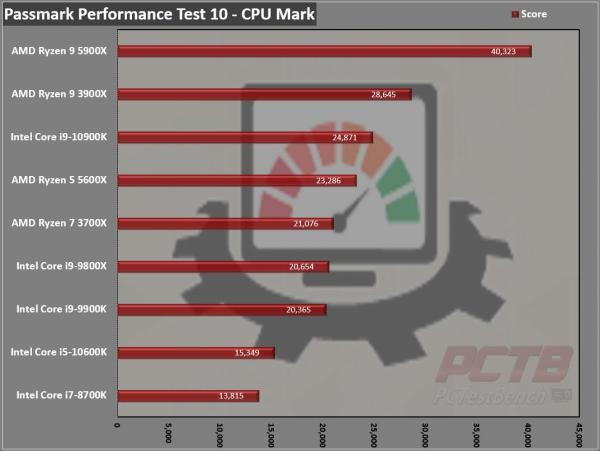

Passmark Performance Test – CPU Mark

“Fast, easy to use, PC speed testing, and benchmarking. PassMark Performance Test ™ allows you to objectively benchmark a PC using a variety of different speed tests and compare the results to other computers.”

Passmark shows the 5600X holding a 50% lead over Intel’s 10600K.

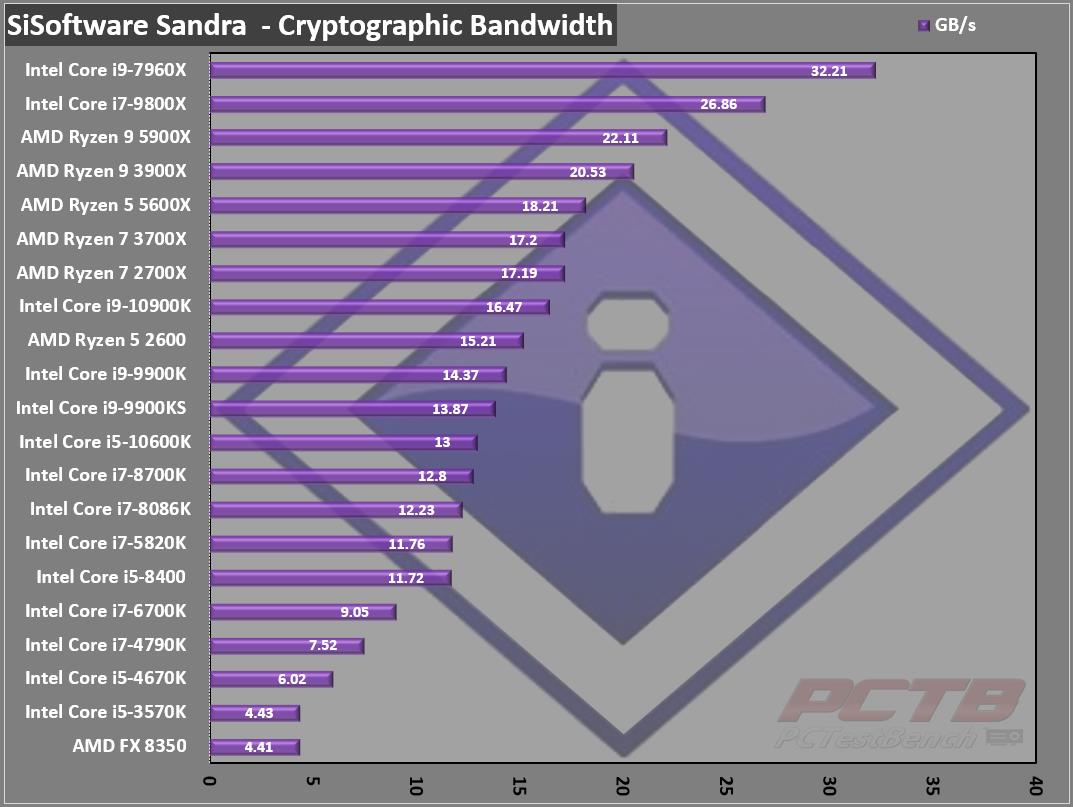

SiSoft Sandra – Cryptographic Bandwidth

“SiSoftware Sandra provides a robust package of diagnostic tools for testing your system and teasing out its problems–or potential headaches.”

The 5600X shows 18.21GB/s of Cryptographic bandwidth, giving ita firm lead over the last generation Ryzen 8-core CPUs and even the current Intel 10-core flagship.

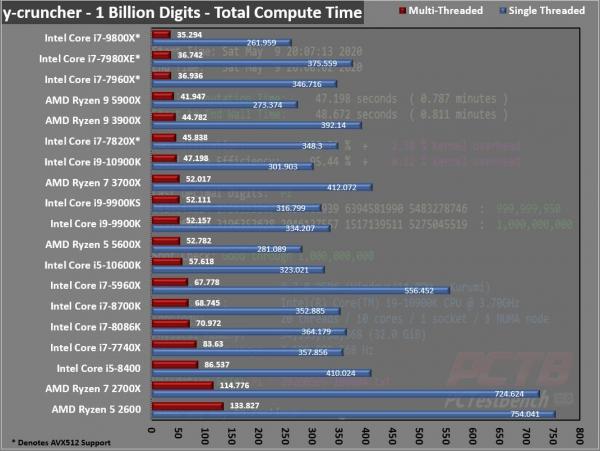

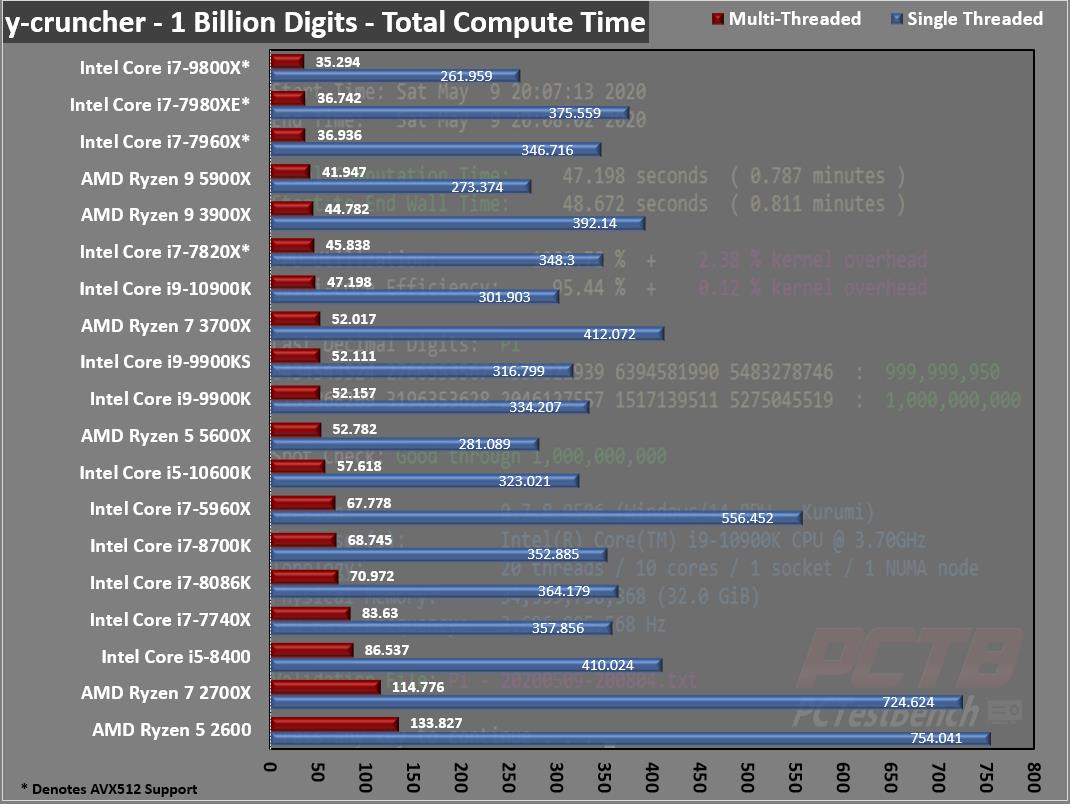

Y-Cruncher

Written by Alexander J. Lee “From a high-school project that went a little too far…” y-cruncher, (y for gamma) is a number-crunching program that can compute various mathematical constants.

It was originally a small program specialized for computing the Euler-Mascheroni Constant. (Which uses gamma as its symbol, hence the name). It has since gained the ability to compute other constants.

It is the first of its kind that is multi-threaded and scalable to multi-core systems. Ever since its launch in 2009, it has become a common benchmarking and stress-testing application for overclockers and hardware enthusiasts.

We tested using the built-in benchmarks to compute Pi to 1 Billion Digits in both single and multi-threaded mode and recorded the Total Computation time at the end of the run. Y-Cruncher is also able to take advantage of AVX512 instructions in compatible CPUs.

In this benchmark, the 5600X holds a narrow lead over the 10600K in both single and multi-threaded runs.

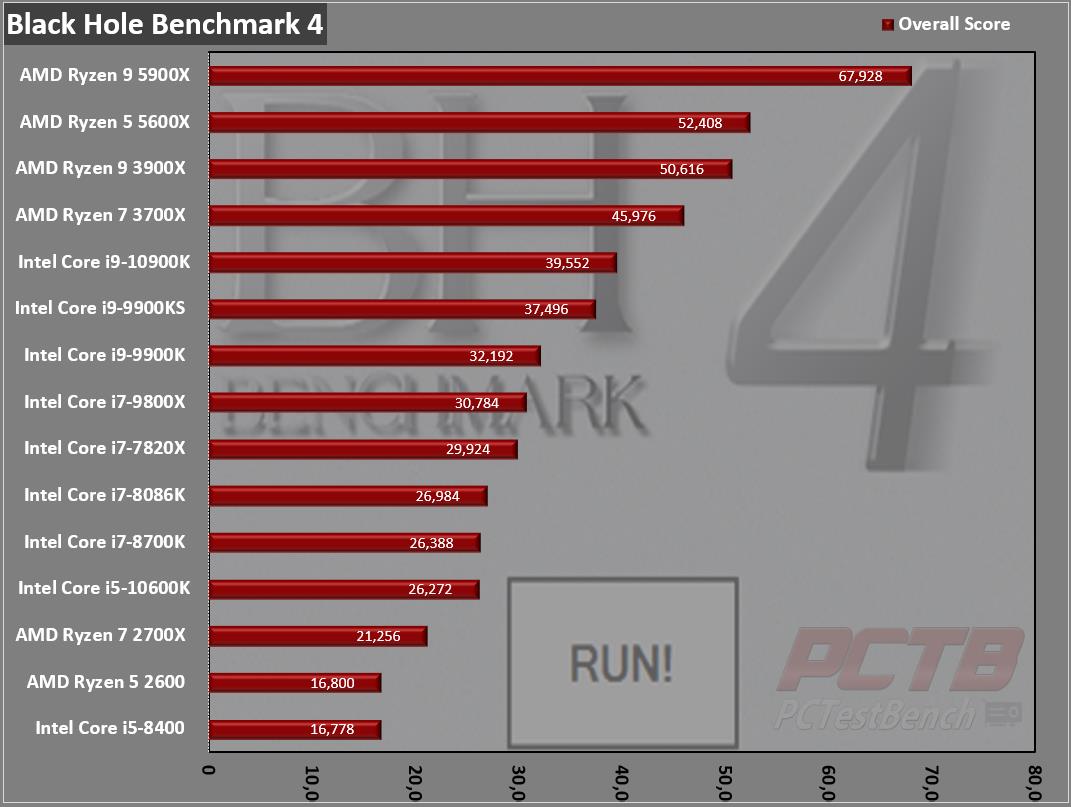

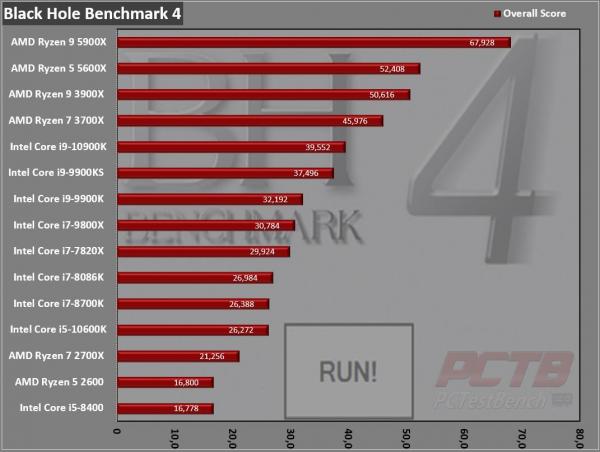

Black Hole 4.2

Let the beast run and benchmark your system in three different tests (Multi threaded, Single-threaded & 4-Threaded) that will test your CPU to the very limit, and score you among hundreds of other systems that have tested.

Multi threaded will test your CPU’s efficiency of running more than one thread without major system lag. The higher you score on this one, the more threads your CPU can handle with a comfortable speed. High multi threaded scores generally mean you can render things faster.

4-Threaded tests your CPU’s performance in games since most games currently run on 4 threads.

Single-threaded evaluates how fast the CPU can handle a single, dedicated thread for processing.

AMD’s Ryzen 5 5600X actually beats out the last generation’s Ryzen 9 3900X with half the cores. Awesome!
